Screen Shots

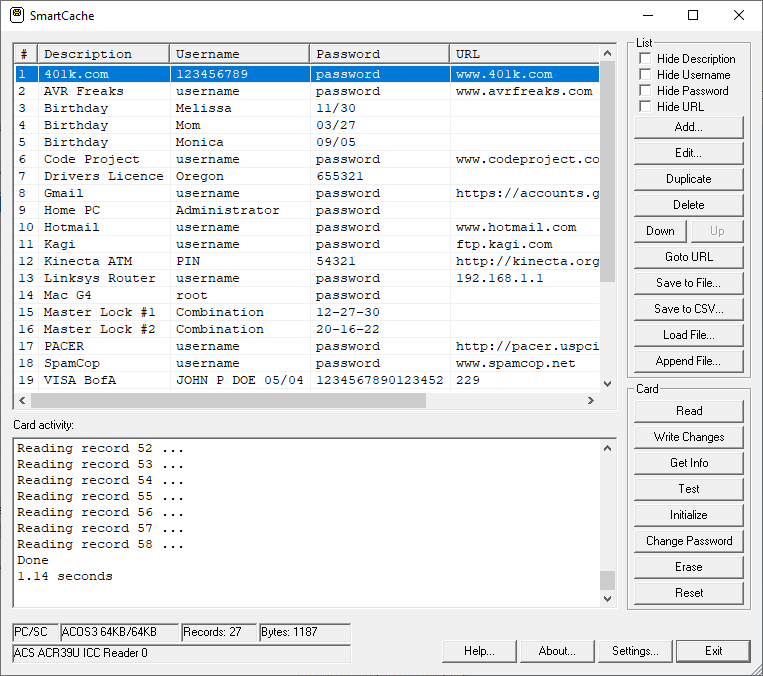

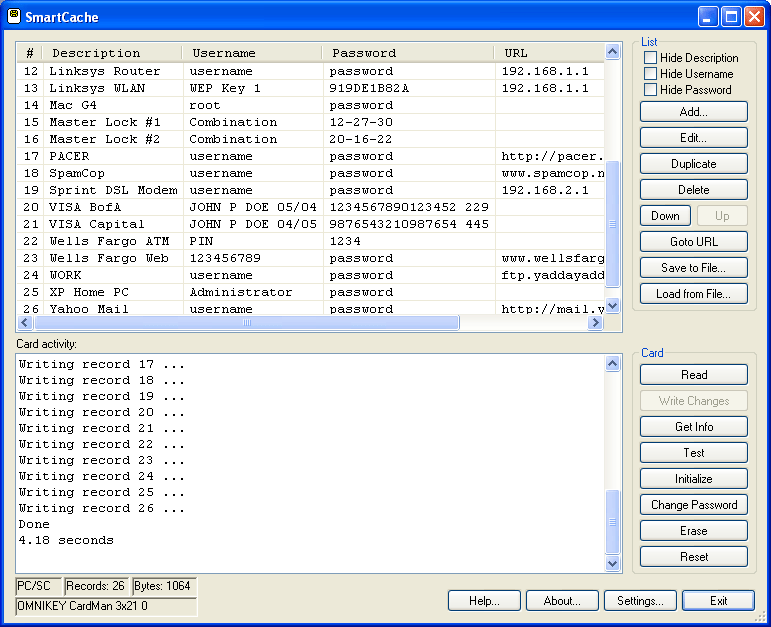

SmartCache Main Window showing data from sample file:

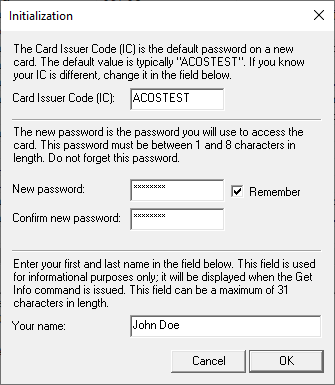

SmartCache Initialization Dialog:

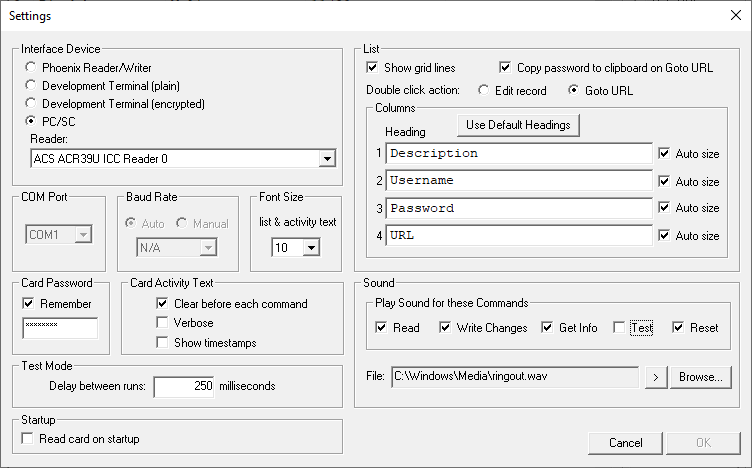

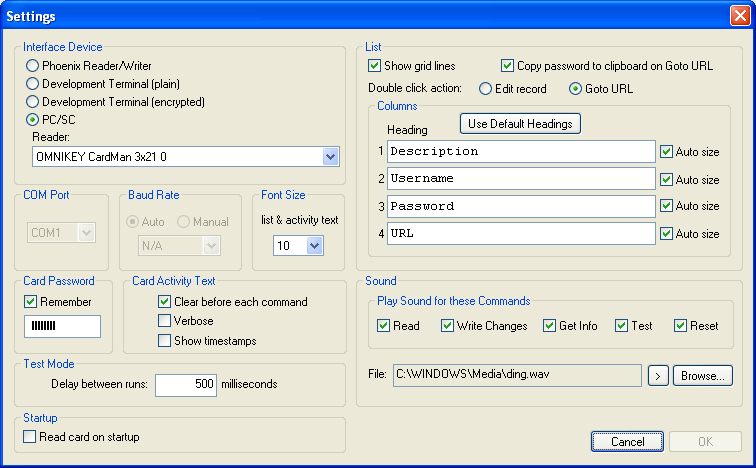

SmartCache Settings Dialog:

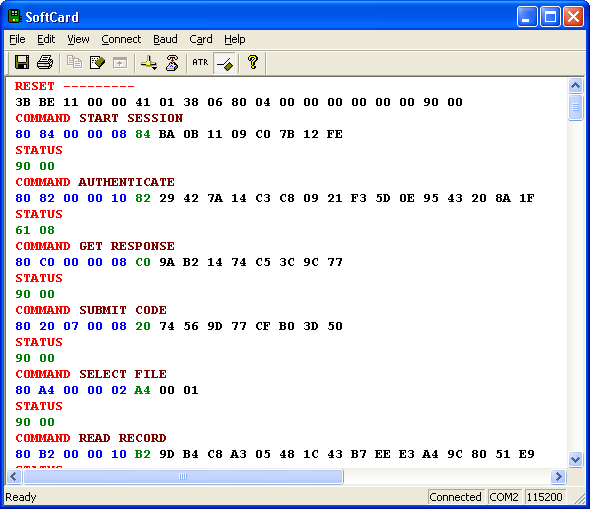

SoftCard Main Window after SmartCache reads the sample file included with SmartCache.
The emulation setup consists of an SDLOGIC SDR-30RS reader/writer
and an SDLOGIC SD-EMU emulator board.
SmartCache is communicating with the SDR-30RS.
SoftCard is communicating with the SD-EMU.
Notice the baud rate of 115,200 bps.
|
|
